Wine-Mate 8500SSHWC Split Central-Ducted Wine Cooling System - WM8500SSHWC
Color : Other
Available from Zip Appliance & Plumbing Repair, serving customers throughout California.
Specifications

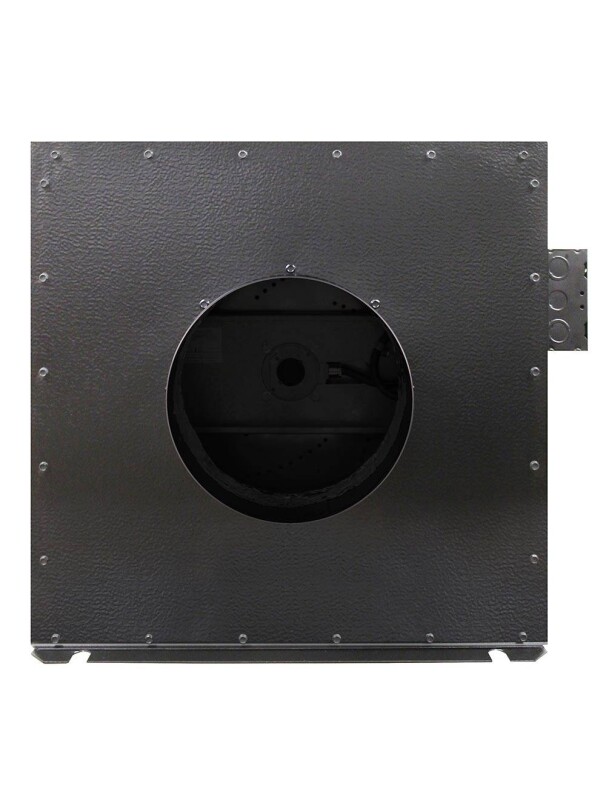

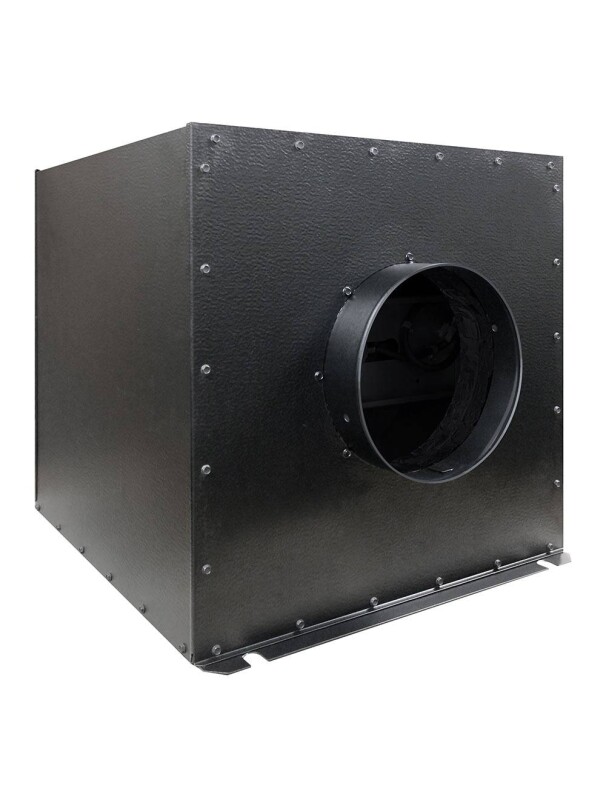

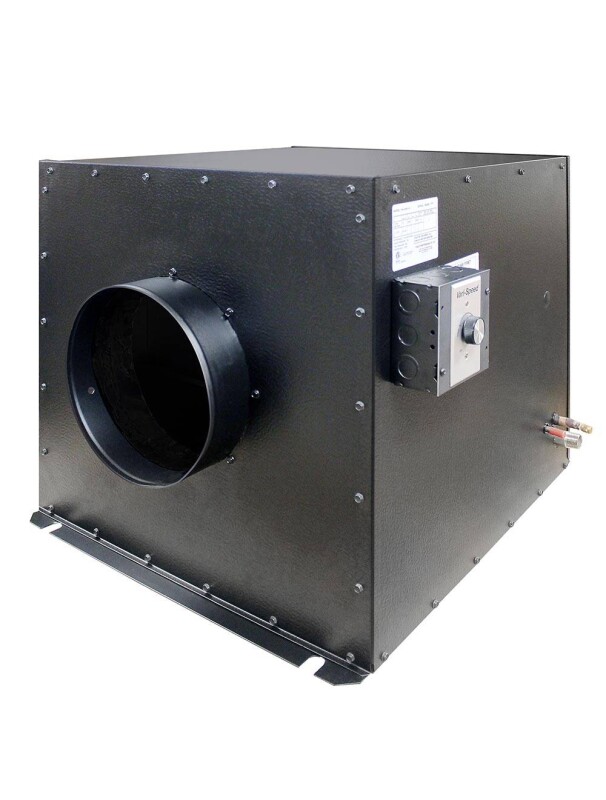

EVAPORATOR UNIT DIMENSIONS
| EVAPORATOR UNIT DIMENSIONS | 27-1/8"W x 22-7/8"D x 22-3/8"H |
EVAPORATOR UNIT WEIGHT
| EVAPORATOR UNIT WEIGHT | 65 lbs |

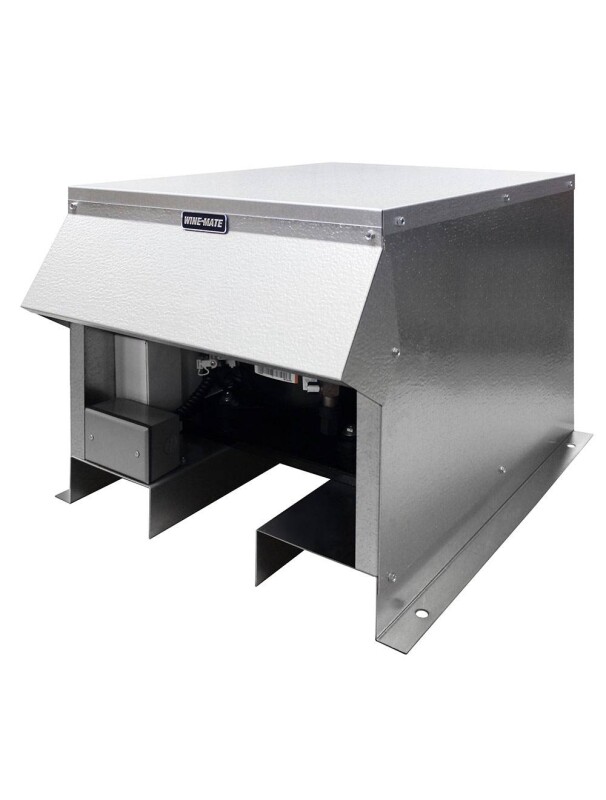

CONDENSING UNIT DIMENSIONS
| CONDENSING UNIT DIMENSIONS | 24"W x 18"D x 18"H |
CONDENSING UNIT WEIGHT
| CONDENSING UNIT WEIGHT | 115 lbs |
ELECTRICAL REQUIREMENTS
| ELECTRICAL REQUIREMENTS | Evaporator Unit 115V 60Hz 3A, Condensing Unit 115V 60Hz 15A. The power cord must be plugged into a 3-prong grounding-type wall receptacle, grounded in accordance with the National Electrical |
NOISE
| NOISE | 63 dBA for cooling unit, 45 dBA for cabinet |
COVERAGE SIZE
| COVERAGE SIZE | 2000 Cubic Feet |
CFM
| CFM | 750 |
BTU/h
| BTU/h | 8500 |
Optional Low Ambient Kit
| Optional Low Ambient Kit | Recommended for applications where the low ambient temperatures in the condensing unit mounting area will be between 0 and 50°F. Feature is factory-installed. |
Temperature Control Panel with Heating Function
| Temperature Control Panel with Heating Function | Works in conjunction with your home's air forced electric heater to ensure that your cellar never goes below the programmed temperature. |
Touch button temperature controller with bottle probe or touch screen WiFi thermostat with humidity monitoring
| Touch button temperature controller with bottle probe or touch screen WiFi thermostat with humidity monitoring | Yes |
Optional Wine Bottle Probe
| Optional Wine Bottle Probe | Provides the most accurate reading of your wine's temperature. The probe measures the temperature of the liquid inside the bottle to ensure your wine is kept at the ideal temperature and plug |
Please call us at 1-800-777-8466 to order this unit with any of the above mentioned options or non-standard configurations.
| Please call us at 1-800-777-8466 to order this unit with any of the above mentioned options or non-standard configurations. | Yes |
Note
| Note | The bottle probe, heating, and quick chill functions are not compatible with WI-FI thermostat. |
*For sales to Alaska, Hawaii, and Puerto Rico please call 1-800-777-VINO (8466) or contact us here for shipping rates and ordering.
| *For sales to Alaska, Hawaii, and Puerto Rico please call 1-800-777-VINO (8466) or contact us here for shipping rates and ordering. | Yes |
Owner's Manual (PDF)
| Owner's Manual (PDF) | Yes |
Spec Sheet (PDF)
| Spec Sheet (PDF) | Yes |
Quick Chilling & Energy Saving Instructions (PDF)
| Quick Chilling & Energy Saving Instructions (PDF) | Yes |
Select a Cooling Unit for Glass Cellar
| Select a Cooling Unit for Glass Cellar | Yes |
