Wine-Mate 6500SSH Split Central-Ducted Wine Cooling System - WM6500SSH
Color : Other
Available from Zip Appliance & Plumbing Repair, serving customers throughout California.
Specifications
Specifications

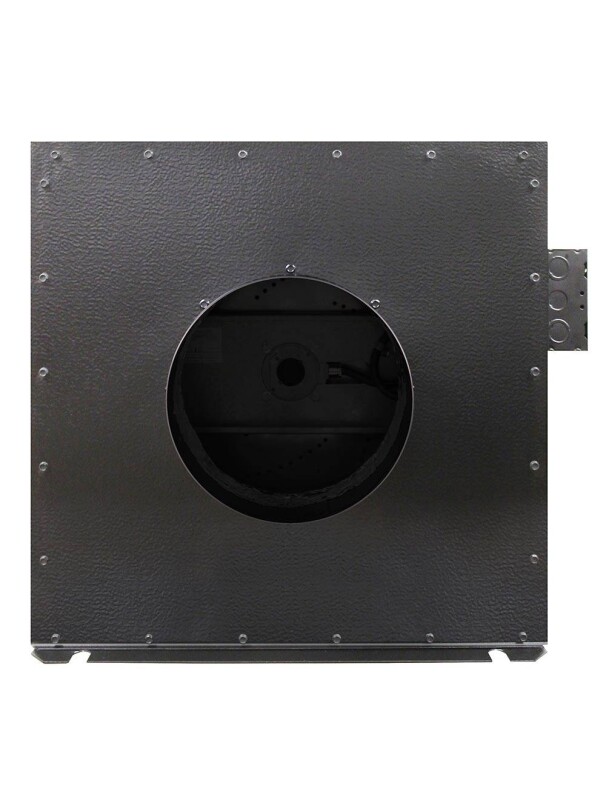

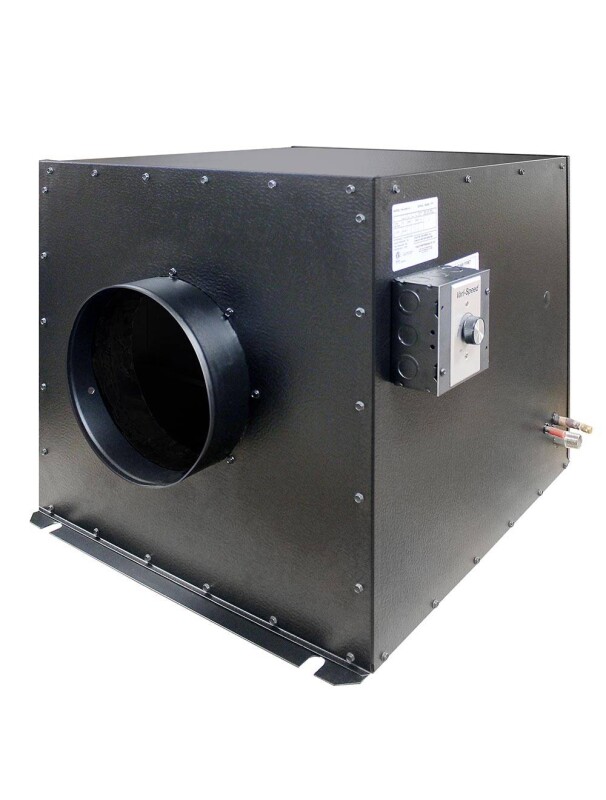

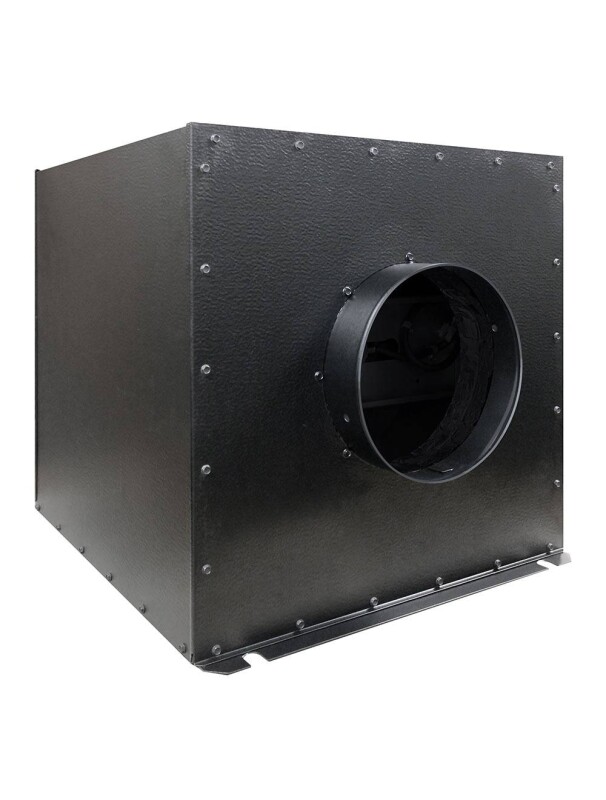

EVAPORATOR UNIT DIMENSIONS
| EVAPORATOR UNIT DIMENSIONS | 25-1/8"W x 22-7/8"D x 20-3/8"H |
EVAPORATOR UNIT WEIGHT
| EVAPORATOR UNIT WEIGHT | 55 lbs |

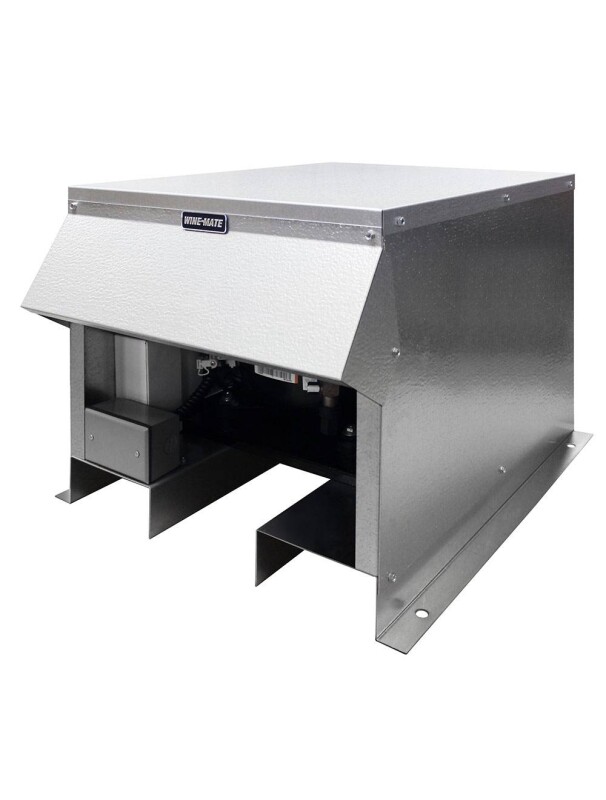

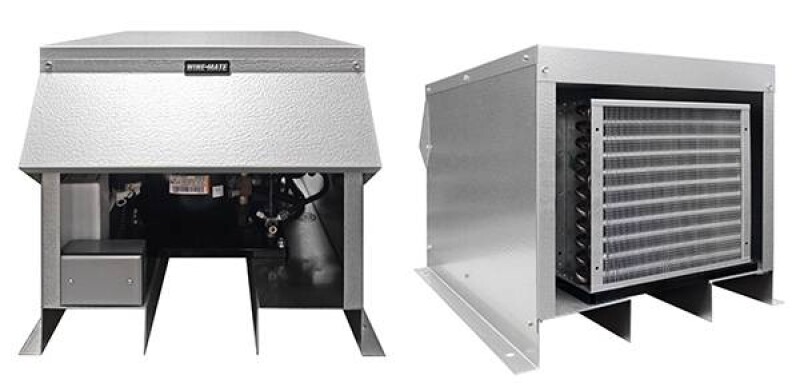

CONDENSING UNIT DIMENSIONS
| CONDENSING UNIT DIMENSIONS | 24"W x 18"D x 18"H |
CONDENSING UNIT WEIGHT
| CONDENSING UNIT WEIGHT | 90 lbs |
ELECTRICAL REQUIREMENTS
| ELECTRICAL REQUIREMENTS | Evaporator Unit 115V 60Hz 2A, Condensing Unit 115V 60Hz 12A. The power cord must be plugged into a 3-prong grounding-type wall receptacle, grounded in accordance with the National Electrical |
NOISE
| NOISE | 60 dBA for cooling unit, 45 dBA for cabinet |
COVERAGE SIZE
| COVERAGE SIZE | 1500 Cubic Feet |
CFM
| CFM | 490 |
BTU/h
| BTU/h | 6500 |
Owner's Manual (PDF)
| Owner's Manual (PDF) | Yes |
Spec Sheet (PDF)
| Spec Sheet (PDF) | Yes |
Quick Chilling & Energy Saving Instructions (PDF)
| Quick Chilling & Energy Saving Instructions (PDF) | Yes |
