Wine-Mate Self-Contained Wine Cellar Cooling System, 1000 cu. ft. Capacity - WM4510HZD
Wine-Mate Self-Contained Wine Cellar Cooling System, 1000 cu. ft. Capacity
Model: WM4510HZD
Wine-Mate Self-Contained Wine Cellar Cooling System, 1000 cu. ft. Capacity
Model: WM4510HZD
Color : Other
Documents
Available from Zip Appliance & Plumbing Repair, serving customers throughout California.
Specifications
DIMENSIONS
| DIMENSIONS | 14 3/8" W x 21 3/4" D x 20" H |
ELECTRICAL REQUIREMENTS
| ELECTRICAL REQUIREMENTS | 115V/60Hz/8A. Dedicated 20 AMP circuit for WM-4510HZD. Power supply must be grounded with 3 prong plug. |
NOISE
| NOISE | 58 dBA for cooling unit, 54 dBA for cabinet |
WEIGHT
| WEIGHT | 95 lbs |
CFM
| CFM | 300 |
BTU/h
| BTU/h | 4500 |
COVERAGE SIZE
| COVERAGE SIZE | 1000 Cubic Feet |
FOR THE FOLLOWING OPTIONS, call to order
| FOR THE FOLLOWING OPTIONS, call to order | 1-800-777-VINO (8466). |
Crankcase heater protects the compressor from damage when the ambient temperature falls below 50°F.
| Crankcase heater protects the compressor from damage when the ambient temperature falls below 50°F. | Yes |
Low cellar temperature activated cellar heater outlet for an electric heater can be used in extreme low temperature condition to protect your wine from freezing.
| Low cellar temperature activated cellar heater outlet for an electric heater can be used in extreme low temperature condition to protect your wine from freezing. | Yes |
Reusable condenser air filter keeps the condenser clean and maintains the cooling unit running efficiently.
| Reusable condenser air filter keeps the condenser clean and maintains the cooling unit running efficiently. | Yes |
Optional left or right towards supply grille, top or rear exhaust, side or rear power cord can meet your customized air supply and installation requirements.
| Optional left or right towards supply grille, top or rear exhaust, side or rear power cord can meet your customized air supply and installation requirements. | Yes |
*For sales to Alaska, Hawaii, and Puerto Rico please call 1-800-777-VINO (8466) or contact us here for shipping rates and ordering.
| *For sales to Alaska, Hawaii, and Puerto Rico please call 1-800-777-VINO (8466) or contact us here for shipping rates and ordering. | Yes |
Top or rear exhaust
| Top or rear exhaust | Yes |
FOR THE FOLLOWING CONFIGURATIONS, call to order
| FOR THE FOLLOWING CONFIGURATIONS, call to order | 1-800-777-VINO (8466). |

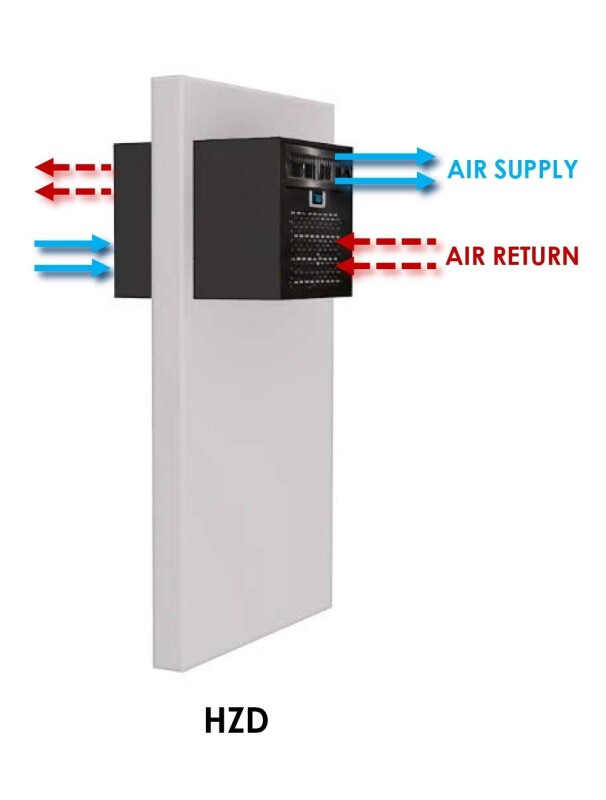

Through-wall installation (standard)
| Through-wall installation (standard) | Yes |
Through-wall installation with hot-air exhaust and ambient air intake ducts
| Through-wall installation with hot-air exhaust and ambient air intake ducts | Yes |
In cellar installation with hot-air exhaust and ambient air intake ducts
| In cellar installation with hot-air exhaust and ambient air intake ducts | Yes |
Through-wall installation with cold air supply ducts
| Through-wall installation with cold air supply ducts | Yes |
Remote installation with cold air supply and cellar air return ducts
| Remote installation with cold air supply and cellar air return ducts | Yes |
The Wine-Mate self-contained units must be operated in an upright position at all times. They should not be placed on their side or flipped upside down.
| The Wine-Mate self-contained units must be operated in an upright position at all times. They should not be placed on their side or flipped upside down. | Yes |
View the Ventilation Guidelines for this unit (PDF)
| View the Ventilation Guidelines for this unit (PDF) | Yes |
Owner's Manual (PDF)
| Owner's Manual (PDF) | Yes |
Installation Manual (PDF)
| Installation Manual (PDF) | Yes |
Custom Installation Manual (PDF)
| Custom Installation Manual (PDF) | Yes |
Quick Chilling & Energy Saving Instructions (PDF)
| Quick Chilling & Energy Saving Instructions (PDF) | Yes |
Select a Cooling Unit for Glass Cellar
| Select a Cooling Unit for Glass Cellar | Yes |
