Wine-Mate 12000SSSWC Split Ceiling-Slim Wine Cooling System - WM12000SSSWC
Color : Other
Available from Zip Appliance & Plumbing Repair, serving customers throughout California.
Specifications
Specifications

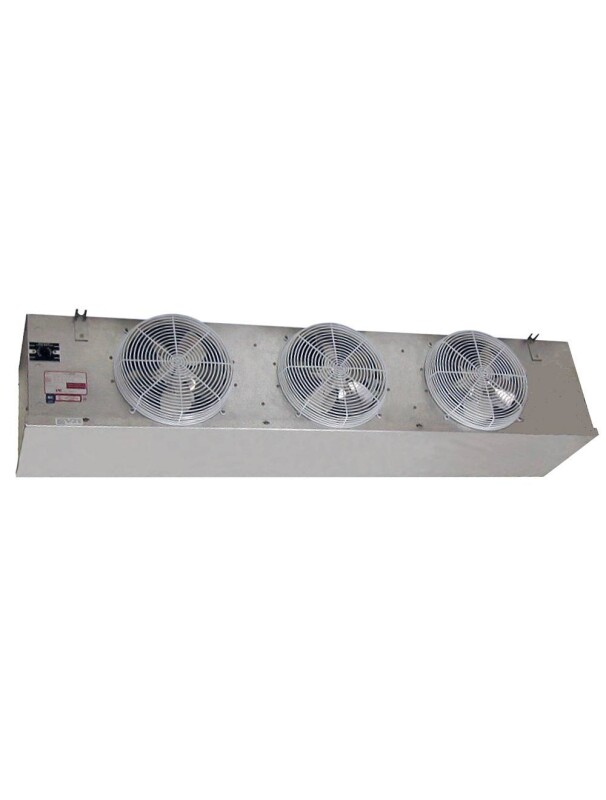

EVAPORATOR UNIT DIMENSIONS
| EVAPORATOR UNIT DIMENSIONS | 62-3/4"W x 13-1/8"D x 12-1/2"H |
EVAPORATOR UNIT WEIGHT
| EVAPORATOR UNIT WEIGHT | 85 lbs |
Evaporator Unit is ETL & NSF certified
| Evaporator Unit is ETL & NSF certified | Yes |
CONDENSING UNIT DIMENSIONS
| CONDENSING UNIT DIMENSIONS | 26"W x 22"D x 18"H |
CONDENSING UNIT WEIGHT
| CONDENSING UNIT WEIGHT | 135 lbs |
ELECTRICAL REQUIREMENTS
| ELECTRICAL REQUIREMENTS | Evaporator Unit 115V 60Hz 2A, Condensing Unit 230V 60Hz 15A. The power cord must be plugged into a 3-prong grounding-type wall receptacle, grounded in accordance with the National Electrical |
COVERAGE SIZE
| COVERAGE SIZE | 3300 Cubic Feet |
NOISE
| NOISE | 64 dBA |
CFM
| CFM | 903 |
BTU/h
| BTU/h | 12000 |
Owner's Manual (PDF)
| Owner's Manual (PDF) | Yes |
Spec Sheet (PDF)
| Spec Sheet (PDF) | Yes |
Quick Chilling & Energy Saving Instructions (PDF)
| Quick Chilling & Energy Saving Instructions (PDF) | Yes |
