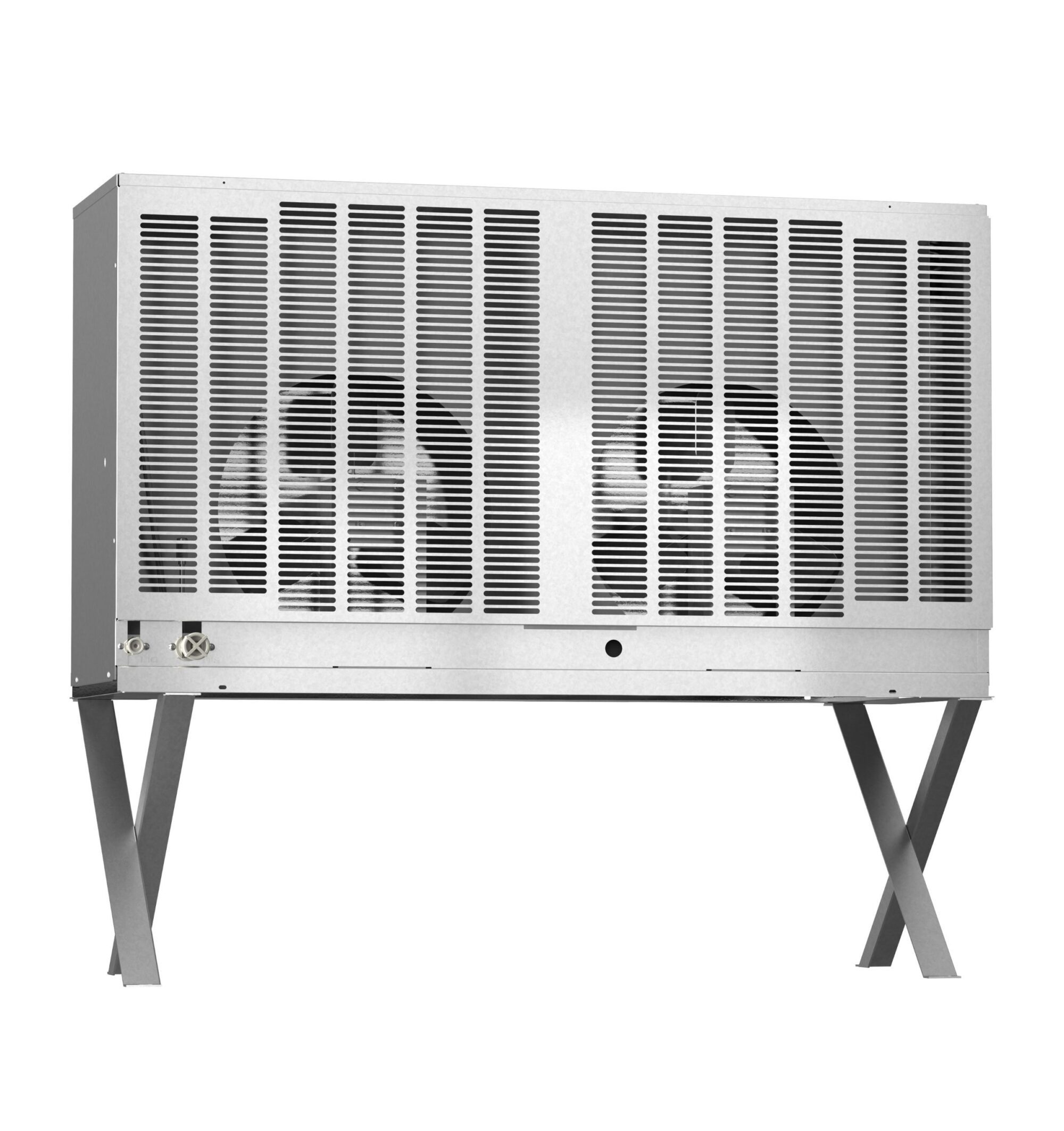

URC Series Remote Condenser - URC22FZ
URC Series Remote Condenser
Model: URC22FZ
URC Series Remote Condenser
Model: URC22FZ
Color : Stainless Steel
Key Features
Must be hardwired at the site (4 wire, including ground)
Dimensions: 46-3/8″ W x 14-1/16″ D x 40-1/2″ H
Weather resistant cabinet for longer life
Allow 24″ clearance for best performance
Remote condenser for KM-1601MRJZ, KM-1601MRJZ3, KM-1601SRJZ, KM-1601SRJZ3, KM-1900SRJZ, KM-1900SRJZ3, KM-2200SRJZ3, KMH-2100SRJZ, KMH-2100SRJZ3, F-2001MRJZ, F-2001MRJZ3, F-2001MRJZ-C
Quiet operation
Single Phase, 115v/60/1, Must be hardwired at the site (4 wire, including ground)
R-404a refrigerant (7 lbs. 11.5 oz. / 3501 g)
Description
Available from Zip Appliance & Plumbing Repair, serving customers throughout California.
Features
Must be hardwired at the site (4 wire, including ground)
Dimensions: 46-3/8″ W x 14-1/16″ D x 40-1/2″ H
Weather resistant cabinet for longer life
Allow 24″ clearance for best performance
Remote condenser for KM-1601MRJZ, KM-1601MRJZ3, KM-1601SRJZ, KM-1601SRJZ3, KM-1900SRJZ, KM-1900SRJZ3, KM-2200SRJZ3, KMH-2100SRJZ, KMH-2100SRJZ3, F-2001MRJZ, F-2001MRJZ3, F-2001MRJZ-C
Quiet operation
Single Phase, 115v/60/1, Must be hardwired at the site (4 wire, including ground)
R-404a refrigerant (7 lbs. 11.5 oz. / 3501 g)
Compatible icemakers, sold separately: KM-1601MRJZ, KM-1601MRJZ3, KM-1601SRJZ, KM-1601SRJZ3, KM-1900SRJZ, KM-1900SRJZ3, KM-2200SRJZ3, KMH-2100SRJZ, KMH-2100SRJZ3, F-2001MRJZ, F-2001MRJZ3, F-2001MRJZ-C
Three Years: Parts & Labor warranty on entire unit.
Five Years: Parts warranty on air-cooled condenser coil.
Specifications
Product Details
| Electrical Specs | Icemaker Connection: Single Phase, 115v/60/1, Must be hardwired at the site (4 wire, including ground) |
| Line Kits | Brazing & Refrigerant Required Line Kits:, 20′ Length: R404-20610, 35′ Length: R404-35610, 55” Length: R404-55610 |
| Operating Limits | Ambient Temp Range: -20 – 122°F, Voltage Range: 104 – 127V, Refrigerant: R-404a |
Dimensions & Weight
| Width | - |
| Height | - |
| Length | - |
| Weight | - |
| Width | 46.375 in. |
| Depth | 14.063 in. |
| Height | 40.5 in. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | - |
| Shipping Height | - |
| Shipping Length | - |
| Shipping Weight | - |
| Total of Shipping Weight | - |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | - |
| Dimensional Weight | - |
| Total of Cubes | - |
| Total of Dimensional Weight | - |
Warranty
| Parts | 3 Years |
| Labor | 3 Years |
| Parts (Condenser) | 5 Years |
