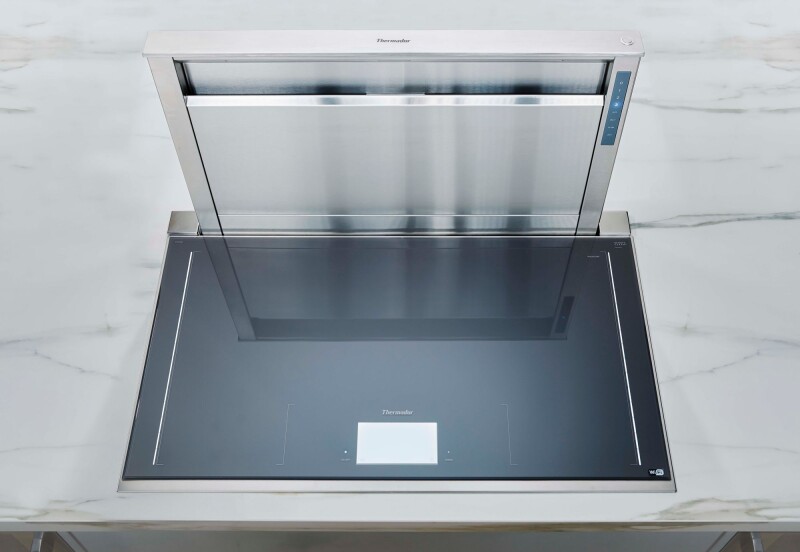

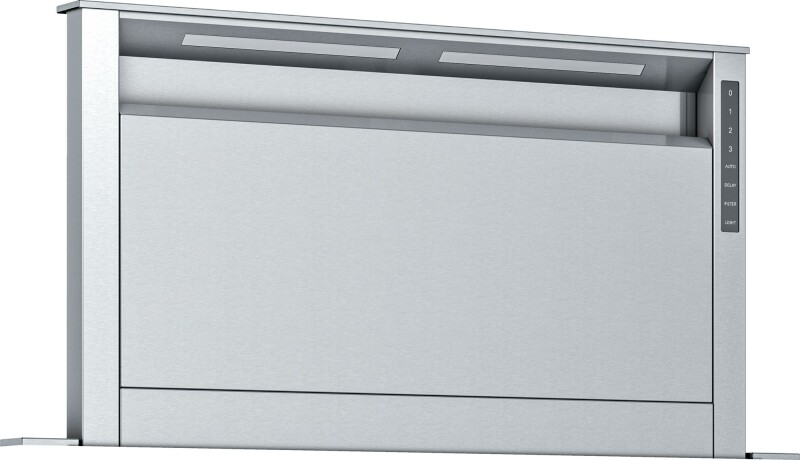

Downdraft Ventilation 37" - UCVP36RS
Downdraft Ventilation 37"
Model: UCVP36RS








Downdraft Ventilation 37"
Model: UCVP36RS
Key Features
3 Fan speeds for the perfect air flow for any cooking situation
Powerfully Quiet system: accepts integral, inline, and remote blowers so you can choose the installation that is best and reduce noise while hood is in use. Ventilation should be seen, not heard.
Easy-to-remove, dishwasher-safe filters
Personalization Options: available with six discharge connections, including front, side, rear and downward exhaust options, as well as recirculation—so you are not limited by kitchen design or pre-determined space.Close
Personalization options with flexible discharge connections
Personalization Options:
Powerfully Quiet system:
Available from Zip Appliance & Plumbing Repair, serving customers throughout California.
Features
3 Fan speeds for the perfect air flow for any cooking situation
3 fan speeds that lets you choose the perfect air flow power for any cooking situation and can handle high-power cooking.
Powerfully Quiet system: accepts integral, inline, and remote blowers so you can choose the installation that is best and reduce noise while hood is in use. Ventilation should be seen, not heard.
Easy-to-remove, dishwasher-safe filters
Dishwasher-Safe Filters combine the elements of a filter with a splatter shield in one easy-to-remove, dishwasher-safe element. These filters maximize grease capture without affecting Downdraft range airflow.
Personalization Options: available with six discharge connections, including front, side, rear and downward exhaust options, as well as recirculation—so you are not limited by kitchen design or pre-determined space.Close
Personalization options with flexible discharge connections
Flexible discharge design gives six configurations to maximize space. Six discharge connections that include front, side, rear and downward exhaust options, as well as recirculation.
Personalization Options:
available with six discharge connections, including front, side, rear and downward exhaust options, as well as recirculation—so you are not limited by kitchen design or pre-determined space.
Powerfully Quiet system:
accepts integral, inline, and remote blowers so you can choose the installation that is best and reduce noise while hood is in use. Ventilation should be seen, not heard.
Specifications
Construction type
| Grease Filter Material | Washable Aluminum |
| Grease filter type | Multilayer cassette |
| Installation Type | Built-in |
| Material | Stainless Steel |
| Motor location | External motor |
| Number of motors | 0 |
| Venting | Ducted: Convertible to Recirculation Mode |
| Typology | Downdraft |
| Color body | Stainless Steel |
Connection
| Frequency | 60 Hz |
| Volts | 120 V |
Comfort and Convenience
| Clean Filter Reminders | Yes |
| Delay Shut Off Modes | yes |
| Boost Speed | no |
| Remote Control (Accessory Sold Separately) | no |
| ADA Compliant (When Installed to ADA requirements) | no |

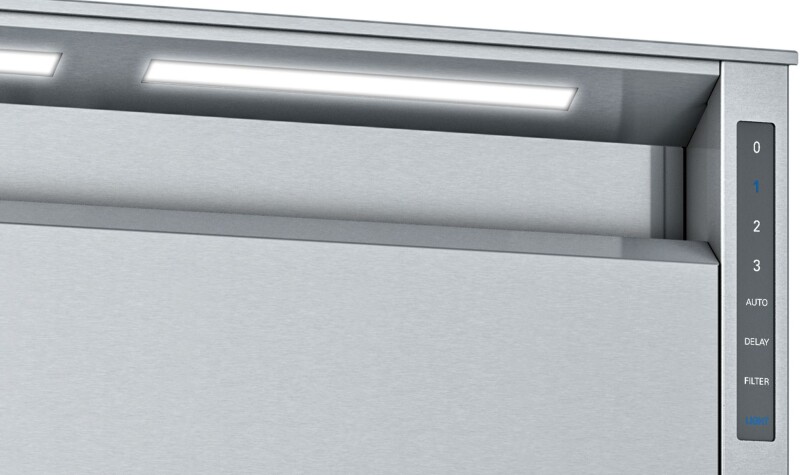

Light
| Color Temperature | Cold White (4.000 K) |
| Heat Lamps | no |
Connectivity
| Home Connect® WiFi-enabled | no |
| Cooktop Hood Sync | no |
Other
| Product Packaging Dimensions (HxWxD) | 7.48 x 37.40 x 26.77 |
| Damper | no |
| Design | Built-in |
| Venting | Ducted: Convertible to Recirculation Mode |
| Type of Control | Touch Control |
| Material | Stainless Steel |
| Speed Settings | 3 Fan Speeds |
| Grease Filter Material | Washable Aluminum |
| Filter Type | Cassette with Aluminum Frame |
Dimensions & Weight
| Width | 37 in. |
| Height | 18 in. |
| Length | 2.75 in. |
| Weight | - |
| Product Packaging Dimensions (HxWxD) | 7.48 x 37.40 x 26.77 |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 42 in. |
| Shipping Height | 23 in. |
| Shipping Length | 7.75 in. |
| Shipping Weight | - |
| Total of Shipping Weight | - |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 1.06 ft³ |
| Dimensional Weight | 13.18 lbs. |
| Total of Cubes | 1.06 ft³ |
| Total of Dimensional Weight | 13.18 lbs. |
