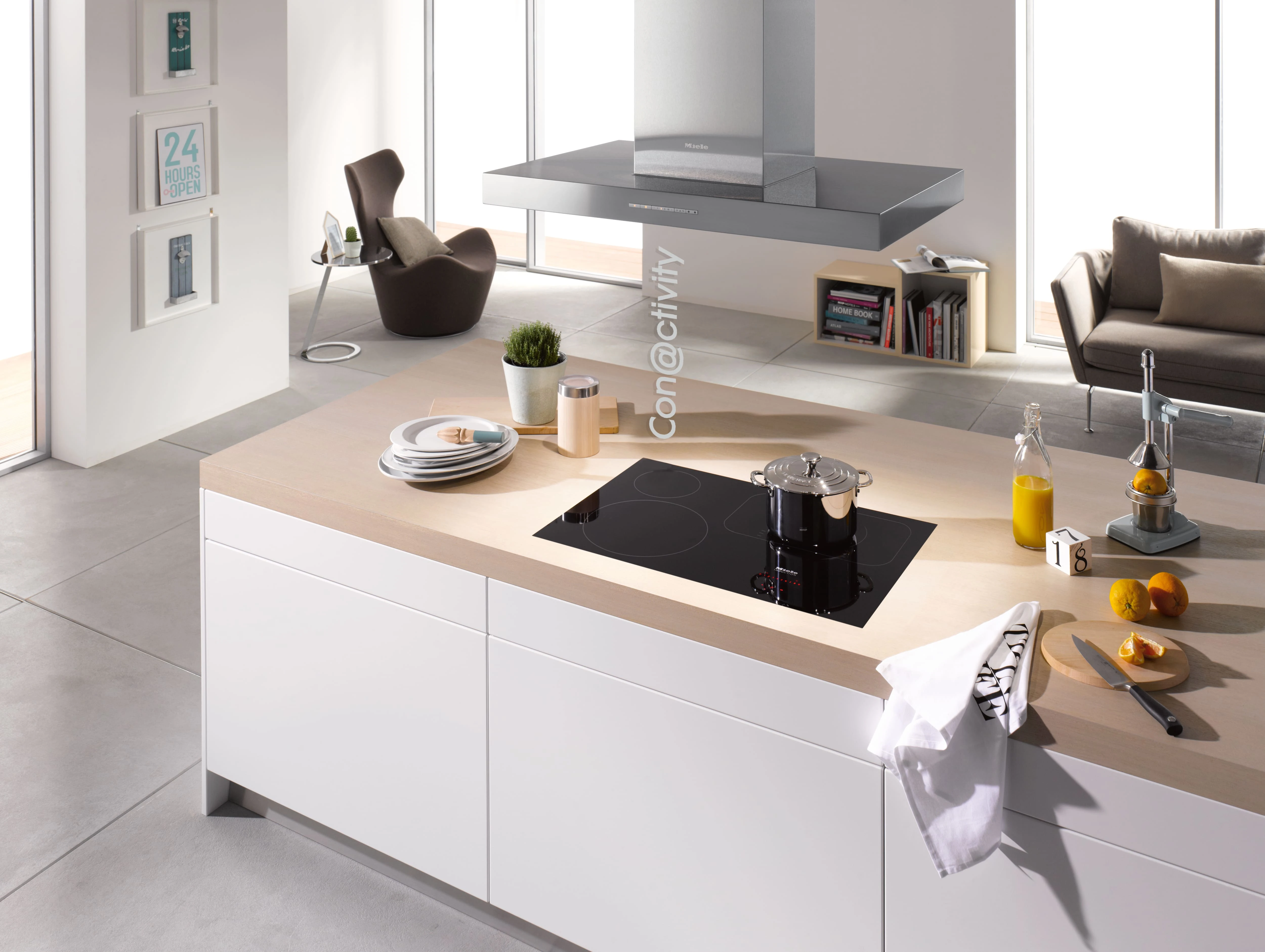

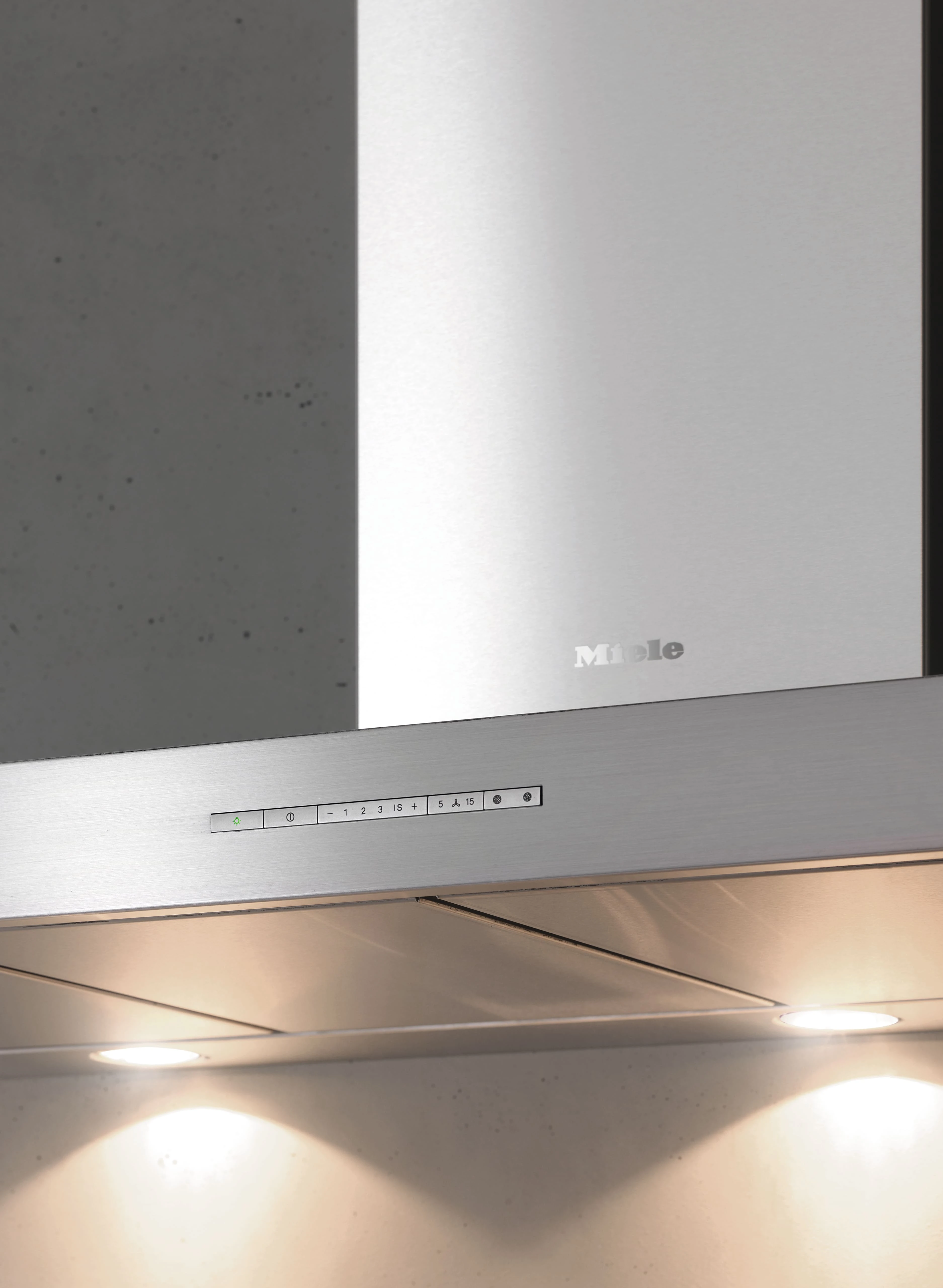

DA 6596 D Puristic Canto Stainless steel - DA6596DSS

DA 6596 D Puristic Canto Stainless steel

Model: DA6596DSS

DA 6596 D Puristic Canto Stainless steel DA6596DSSDA 6596 D Puristic Canto Stainless steel DA6596DSSDA 6596 D Puristic Canto Stainless steel DA6596DSS
DA 6596 D Puristic Canto Stainless steel DA6596DSS
DA 6596 D Puristic Canto Stainless steel DA6596DSS
DA 6596 D Puristic Canto Stainless steel DA6596DSS

Color : Clean Touch Steel

DA 6596 D Puristic Canto Stainless steel DA6596DSS
Clean Touch Steel

Key Features

  • Delayed shutdown

  • filter saturation indicator

  • Safety turn off

  • Con@ctivity 2.0

  • Stainless-steel grease filters (10-layer)

  • Silence

  • Miele CleanCover

  • Edge vented

Available from Zip Appliance & Plumbing Repair, serving customers throughout California.

Features
Specifications

Features

Delayed shutdown

The automatic blower run-on ensures the full vented of steam and odors still in the air after cooking. The ventilation hood can be set to switch off automatically after 5 or 15 minutes.

filter saturation indicator

If the grease or active charcoal filter of your ventilation hood(s) is saturated, the red LED indicator will light up. Your filter should then be cleaned or replaced as soon as possible. You can individually adjust the factory-set service life of the filters: The grease filter saturation indicator can be programmed for 20, 30, 40 or 50 hours, the indicator for active charcoal filter replacement for 120, 180 or 240 hours.

Safety turn off

The ventilation hood will switch off automatically after 10 hours. This ensures maximum safety even in case of operating errors.

Con@ctivity 2.0

Concentrate fully on cooking: With Con@ctivity 2.0, your ventilation hood always knows exactly what to do. When the cooktop is switched on or off, the ventilation hood reacts automatically, adapting the extraction power to what’s happening on the cooktop and thus maintaining a pleasant room climate. The appliances communicate with each other via Wi-Fi. Con@ctivity 2.0 allows you to integrate the ventilation hood and cooktop into Miele@home.

Stainless-steel grease filters (10-layer)

Miele Ventilation Hoods are equipped with a 10-ply stainless-steel grease filter and guarantee a high-level of grease removal. During removal, the integrated fall protection ensures safe handling and protects your cooktop against damage. The top layer and the filter frame are made of high-quality stainless steel, meaning that there is no visible discoloration as a result of dishwasher cleaning and it retains its sleek appearance for a long time.

Silence

Efficient and very quiet: The motor, chimney and ventilation hood canopy are equipped with special insulators for effective sound-proofing. This allows normal conversations even with high air throughput.

Miele CleanCover

Located behind the grease filters is the Miele CleanCover: Instead of sharp metal edges and electrical components you will find only a sealed, smooth surface. The CleanCover is also particularly easy to clean. Miele care and attention down to the very last detail for greater safety and convenience.

Edge vented

In ventilation hoods with edge extraction panels, the commercial-looking metal grease filters are hidden behind a decorative cover. The cooking vapors are drawn in at the outer edges.

Specifications

General information

Model numberDA 6596 D Puristic Canto
Manufacturer material number09762240
EAN number4002515524817
Marketing classGold

Design

Island ventilation hoodTRUE
ColorStainless steel
Multi-zone edge extractionTRUE

Operating modes

Recirculated modeCan be retrofitted
Recirculation conversion kit (order separately)DUI 32
OdorFree charcoal filter (order separately)DKF12-900
Decor elements in glass (order separately)DRP 6590D

User convenience

Automatic functionCon@ctivity 2.0
Electronic controlsTRUE
OperationLight-touch sw.w.LEDs+r.contr.
Power levels (number excl. Intensive)3
Booster levels1
Delayed shutdown for 5 or 15 minutesTRUE
Grease filter saturation indicatorTRUE
Active charcoal filter saturation indicatorTRUE
Acoustic packageTRUE
CleanCoverTRUE

Cleaning convenience

Easy-to-clean canopy interior – CleanCoverTRUE

Filter system

Number of dishwasher-safe stainless steel grease filters (10-ply)3

Lighting

Number x W4 x 3 W
Light intensity in Lx540 lx
Color temperature in K3500 Kelvin

Blower

Dual-action blowerTRUE

Safety

Safety shut-offTRUE

Technical data

Overall hood height for vented mode and external in inches (mm)27 1/4 (690)–39 (990)
Overall height for recirculation mode ventilation hoods in mm29 5/8 (750)–41 3/4 (1060)
Overall min. height for vented and external in in. (mm)27 1/4 (690)
Overall max. height for vented and external in in. (mm)39 (990)
Overall min. height for recirculation in in. (mm)29 5/8 (750)
Overall max. height for recirculation in in. (mm)41 3/4 (1060)
Canopy width in in. (mm)35 3/8 (898)
Canopy height in in. (mm)2 7/8 (70)
Depth of hood canopy in in. (mm)23 5/8 (598)
Minimum height above electric cooktops in mm24 1/8 (610)
Minimum safety distance above gas cooktops (max. 12.6 kW total power, burner ≤ 4.5 kW) in mm26 (660)
Net weight in lbs. (kg)75 (34.0)
Plug typeWithout plug
Hard-wiredTRUE
Total connected load in kW0.362
Voltage in V120
Fuse rating in A15
Frequency in Hz60
Number of phases1

Installation note

Vent connection at topTRUE
Diameter of vent connection in in. (mm)6 (150)
Telescopic chimneyTRUE

Standard accessories

Non-return flapTRUE
Communication module for Con@ctivity XKM 2000 DAXKS 3000 Z
