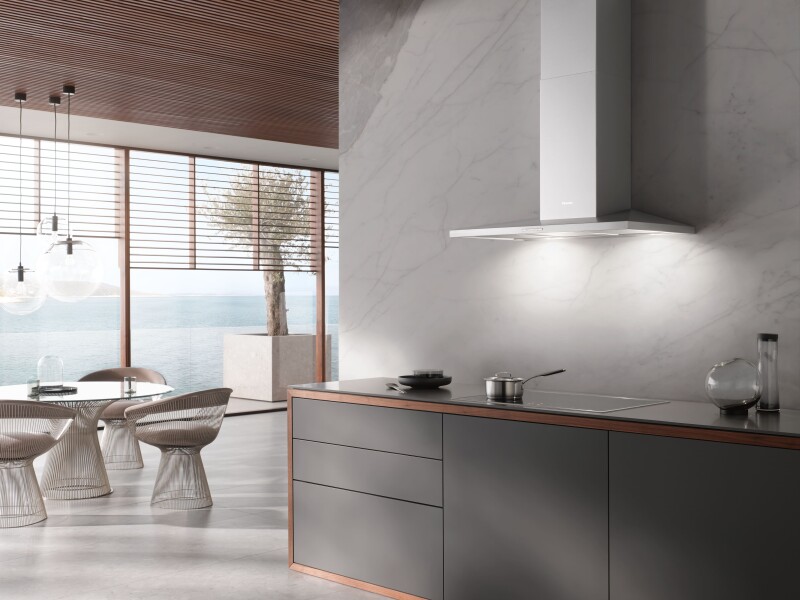

36" Classic Chimney Wall Ventilation Hood 625 CFM (Stainless Steel) - DA3997SS
Color : Stainless steel
Key Features
Safety turn off
Stainless-steel grease filters (10-layer)
Miele CleanCover
Available from Zip Appliance & Plumbing Repair, serving customers throughout California.
Features
Safety turn off
The ventilation hood will switch off automatically after 10 hours. This ensures maximum safety even in case of operating errors.
Stainless-steel grease filters (10-layer)
Miele Ventilation Hoods are equipped with a 10-ply stainless-steel grease filter and guarantee a high-level of grease removal. During removal, the integrated fall protection ensures safe handling and protects your cooktop against damage. The top layer and the filter frame are made of high-quality stainless steel, meaning that there is no visible discoloration as a result of dishwasher cleaning and it retains its sleek appearance for a long time.
Miele CleanCover
Located behind the grease filters is the Miele CleanCover: Instead of sharp metal edges and electrical components you will find only a sealed, smooth surface. The CleanCover is also particularly easy to clean. Miele care and attention down to the very last detail for greater safety and convenience.
Specifications
General information
| Model number | DA 399-7 Classic |
| Manufacturer material number | 10558800 |
| EAN number | 4002515802199 |
| Marketing class | Silver |
Design
| Wall ventilation hood | TRUE |
| Color | Stainless steel |
Operating modes
| Recirculated mode | Can be retrofitted |
| Recirculation conversion kit (order separately) | DUW 20 |
| OdorFree charcoal filter (order separately) | DKF 12-P |
User convenience
| Electronic controls | TRUE |
| Operation | Light-touch switches with LEDs |
| Power levels (number excl. Intensive) | 3 |
| Booster levels | 1 |
| Programmable Intensive switch-off | TRUE |
| CleanCover | TRUE |
Efficiency and sustainability
| TRUE |
Cleaning convenience
| Easy-to-clean canopy interior – CleanCover | TRUE |
Filter system
| Number of dishwasher-safe stainless steel grease filters (10-ply) | 3 |
Lighting
| LED ClearView lighting | TRUE |
| Number x W | 2 x 3 W |
| Light intensity in Lx | 300 lx |
| Color temperature in K | 3000 Kelvin |
Blower
| Dual-action blower | TRUE |
| AC motor | TRUE |
Exhaust air
| Air throughput in CFM in Booster | 489 |
| Air throughput | Values upon request |
| Air throughput with Booster level 1 (m³/h) according to EN 61591 | 488.52 (830) |
Safety
| Safety shut-off | TRUE |
Technical data
| Overall min. height for vented and external in in. (mm) | 27 3/8 (695) |
| Overall max. height for vented and external in in. (mm) | 40 (1015) |
| Overall min. height for recirculation in in. (mm) | 32 1/2 (825) |
| Overall max. height for recirculation in in. (mm) | 45 1/8 (1145) |
| Canopy width in in. (mm) | 35 3/8 (898) |
| Canopy height in in. (mm) | 4 3/4 (120) |
| Depth of hood canopy in in. (mm) | 20 1/2 (520) |
| Minimum height above electric cooktops in mm | 24 1/8 (610) |
| Minimum safety distance above gas cooktops (max. 12.6 kW total power, burner ≤ 4.5 kW) in mm | 26 (660) |
| Net weight in lbs. (kg) | 58 (26.0) |
| Length of electrical wire in ft. (m) | 4 (1.5) |
| Standard plug fitted | TRUE |
| Plug type | NEMA plug: 5–15 |
| Total connected load in kW | 0.356 |
| Voltage in V | 120 |
| Fuse rating in A | 15 |
| Frequency in Hz | 60 |
| Number of phases | 1 |
Installation note
| Vent connection at top | TRUE |
| Diameter of vent connection in in. (mm) | 6 (150) |
| Telescopic chimney | TRUE |
Standard accessories
| Non-return flap | TRUE |
Dimensions & Weight
| Width | 35.35 in. |
| Height | - |
| Length | 20.47 in. |
| Weight | 126.37 lbs. |
| Gross Weight | 68.34 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 40.16 in. |
| Shipping Height | 26.18 in. |
| Shipping Length | 25.59 in. |
| Shipping Weight | 166.37 lbs. |
| Source | Manufacturer |
| Total of Shipping Weight | 166.37 lbs. |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 15.57 ft³ |
| Dimensional Weight | - |
| Total of Cubes | - |
| Total of Dimensional Weight | - |
| Cubic Feet Measurement | - |
