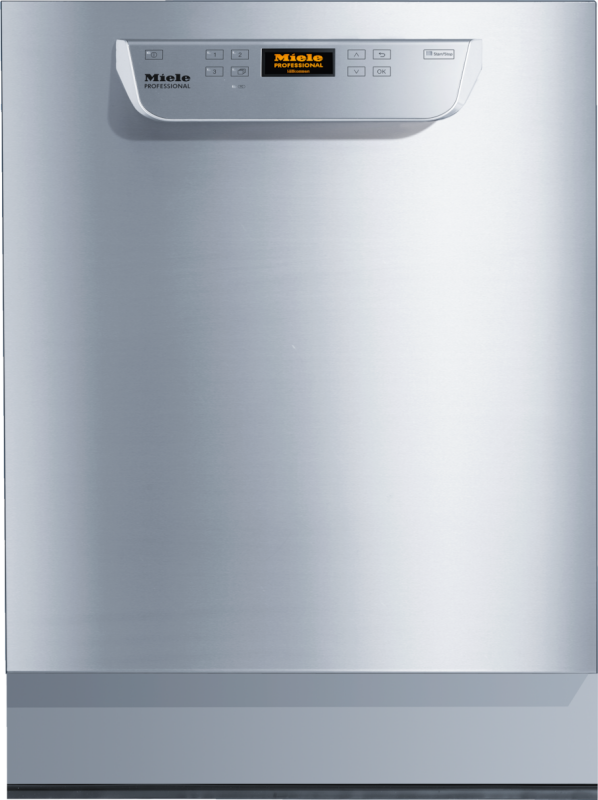

Built‑under fresh water dishwasher ADA compliant, with baskets for hotels, restaurants and catering companies. - PG80561U208V
Built‑under fresh water dishwasher ADA compliant, with baskets for hotels, restaurants and catering companies.
Model: PG80561U208V
Built‑under fresh water dishwasher ADA compliant, with baskets for hotels, restaurants and catering companies.
Model: PG80561U208V
Color : Stainless steel
Key Features
Maximum user convenience
An eye on the time
Your dishwasher “speaks" multiple languages
Touch display
Replenish salt conveniently
Optimum features
Maximum hygiene assurance
Versatile
Available from Zip Appliance & Plumbing Repair, serving customers throughout California.
Features
Maximum user convenience
The flush controls on the stainless steel fascia are easy to use and clean.
An eye on the time
For maximum flexibility, a delay start time of up to 24 hours can be selected.
Your dishwasher “speaks" multiple languages
Multi-talented: set various languages on the display so that you fully understand every piece of information.
Touch display
All the main information is accessible quickly and easily via the convenient operating display.
Replenish salt conveniently
Ergonomic convenience: The salt container can be conveniently refilled without removing the lower basket.
Optimum features
Always perfect ergonomics and efficiency - with practical accessories, from special baskets to dispenser pumps.
Maximum hygiene assurance
Constantly high cleaning performance and filtration thanks to repeated water changes.
Versatile
The height of the upper basket can be adjusted to suit the items being cleaned.
Perfect results on all levels
It is possible to use the plastic baskets on two levels as an option.
Sparkling results
Functional design for superb washing and reliable drying results.
Optional dispensing of liquid agents
An optional dispenser module can be connected for convenient and economical use of liquid agents.
Economical
Economical and efficient: Miele Professional dishwashers stand out with low consumption values.
Economical
Connection to a hot water supply shortens the program run times, reducing energy consumption.
Large wash cabinet
High capacity: The most diverse items can be arranged safely on two wash levels.
Ensures the optimum water hardness level
The built-in softener ensures the optimum hardness level of the water for perfect dishwashing results.
Long service life
Durability: Miele Professional dishwashers are tested for a long service life.
A gentle way to a perfect shine
A gentle way to a perfect shine: With Perfect GlassCare, your glasses are thoroughly and gently cleaned.
Variable adjustment options
Adjusting the program parameters as required ensures consistently perfect dishwashing results
Gleaming results in no time
Thanks to intelligent professional technology you can benefit from very short programs and perfect results.
Perfect Integration

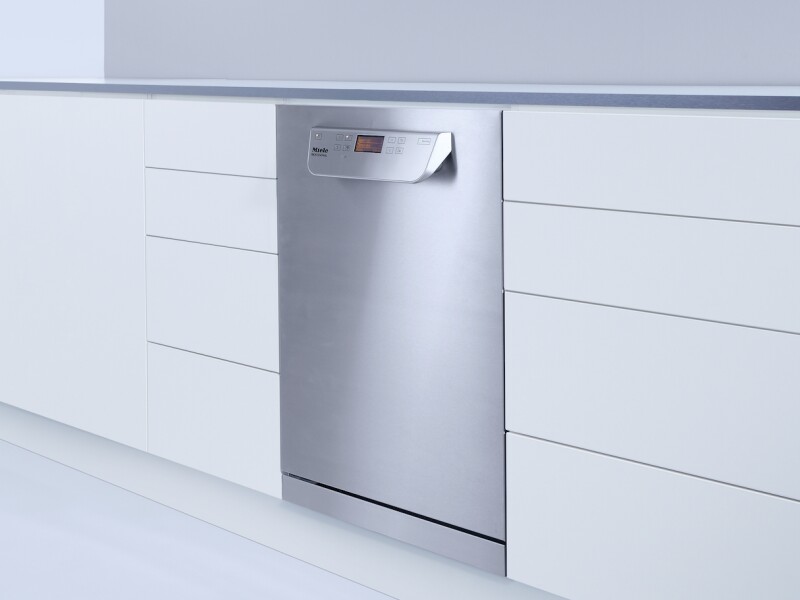

Perfect appearance thanks to dishwashers that can be built-under.
Specifications
Construction type and design
| Model | Built-under dishwasher |
| Range | Professional |
| Wash system | Fresh water front loader |
| Number of levels | 2 |
| Front | Stainless steel |
| Lid | Stainless Steel |
| Side walls | Stainless steel |
| Convertible to a freestanding appliance | Stand 1-80, stainless steel |
Application
| Suitable for small restaurants/bars | Yes |
| Suitable for hospitality industry | Yes |
| Suitable for Bed & Breakfast | Yes |
| Suitable for canteens | Yes |
| Suitable for small businesses | Yes |
| Suitable for fast food restaurants | Yes |
| Suitable for sports clubs | Yes |
Performance data
| Circulation pump, Qmax in gal/min (l/min) | 103 (390) |
| Shortest program duration in min. | 6 |
| Maximum final rinse temperature in °F (°C) | 158 (70) |
| Cleaning performance, plates/h | 380 |
| Cleaning performance, baskets/h | 20 |
| Possible to wash plastic baskets on two levels | Yes |
| Service life in wash cycles | 15000 |
Control
| Control system | TouchControl |
| Program selection | Touch on Metal |
| Max. delay start in h | 24 |
| Countdown indicator | Yes |
| Program sequence indicator | Yes |
| Choice of display language | Yes |
| Language-neutral operation | Yes |
Standard electrical connection
| Electrical connection | 2 PH. 208V 60HZ |
| Heater rating in kW | 5.40 |
| Total connected load in kW | 5.80 |
| Fuse rating in A | 30 |
| Length of power cord in ft (m) | 5 (1.70) |
Possible voltage variant 1
| Electrical connection | 3 PH. 208V 60HZ |
| Heater rating in kW | 5.40 |
| Total connected load in kW | 5.80 |
| Fuse rating in A | 20 |
Water connection/drainage
| Cold water [number] | 1 |
| Hot water [number] | 1 |
| Required flow pressure in bar | 0.40-10 |
| Drain hose [DN] | 22 |
| Maximum delivery head for drain pump in inches (cm) | 39 3/8 (100) |
| Integrated water softener | Yes |
| Maximum water hardness in gpg (mmol/l) | 10.7 (10.70) |
| Water consumption per wash cycle in gal (l) | 2.1 (8.00) gll (l) |
Emission values
| Emission sound pressure level in workplace (LpA) | 47 dB(A) re 20 µPa |
| Sound power (LwA) in dB(A) re 1 pW | 59 |
| Heat output to the room in Mj/h | 1.08 |
Baskets
| 1 x O 891 upper basket for cups | Yes |
| 1 x U 890 lower basket for inserts | Yes |
| 1 x E 810 insert for dessert plates | Yes |
| 2 x E 816 inserts for plates | Yes |
| 2 x E 165 inserts for cutlery | Yes |
| Height-adjustable upper basket | Yes |
Features
| Drying | None |
| 1 Combi dispenser/door for powder and liquid media | Yes |
| Wash cabinet made from high-quality stainless steel | Yes |
| In-door salt container | Yes |
| Perfect GlassCare | Yes |
| Adjustable temperature holding time | Yes |
| Adjustable final rinse temperature | Yes |
| Adjustable wash temperature | Yes |
| Adjustable rinse time | Yes |
| Optical interface | Yes |
| A wide range of accessories (optional) | Yes |
Connection options
| External dispensing module for liquid cleaning agent | Yes |
Standards, test certificates, and symbols
| CE | Yes |
| Complies with Machinery Directive 2006/42/EC | Yes |
| EMC | Yes |
| Interference suppression | Yes |
| VDE | Yes |
| EN 1717 | Yes |
| ADA compliant | Yes |
| DIN 10512 | Yes |
Other
| Maximum floor load in N/m² | 1200 |
Dimensions & Weight
| Width | - |
| Height | 37.06 in. |
| Length | - |
| Weight | 153 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | - |
| Shipping Height | 42.06 in. |
| Shipping Length | - |
| Shipping Weight | 158 lbs. |
| Total of Shipping Weight | 158 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | - |
| Dimensional Weight | - |
| Total of Cubes | - |
| Total of Dimensional Weight | - |
