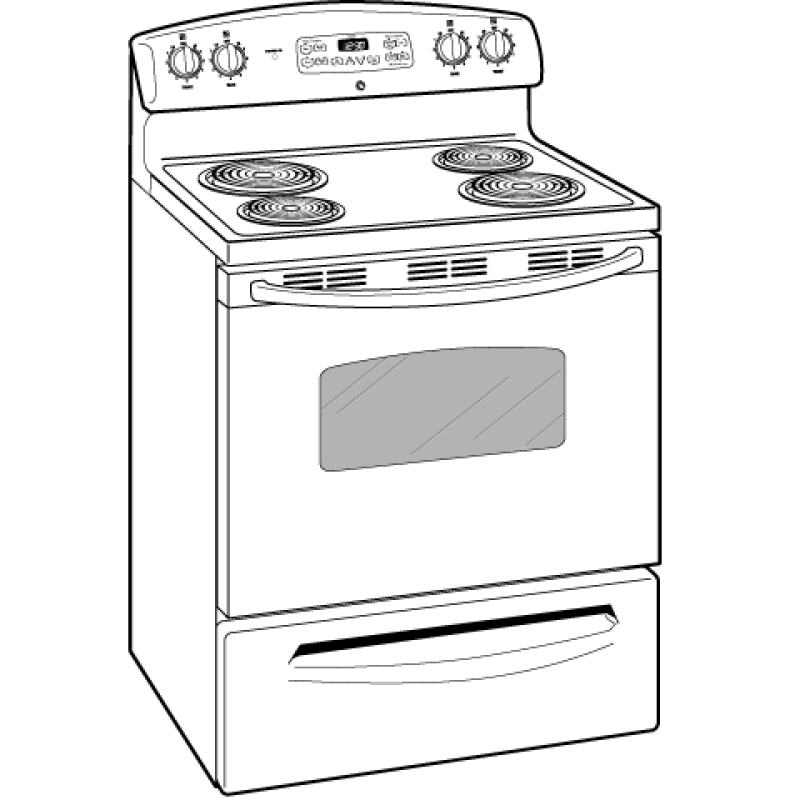

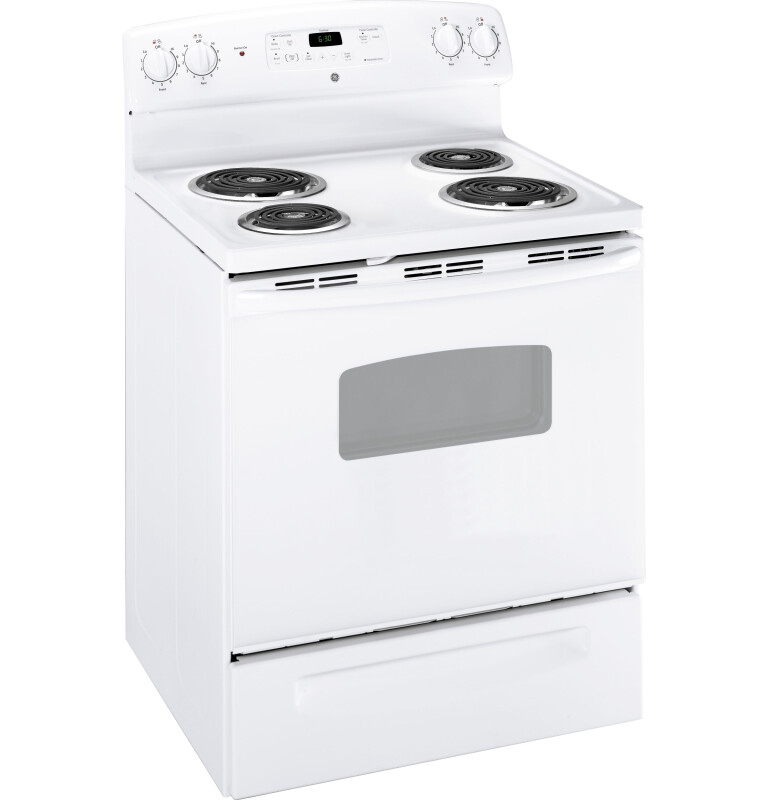

30" Free-Standing Electric Range - JBP23DNWW
30" Free-Standing Electric Range
Model: JBP23DNWW
30" Free-Standing Electric Range
Model: JBP23DNWW
Color : White
Key Features
Self-clean oven
Super-large oven capacity
QuickSet oven controls
Coil heating elements
Dual-element bake
Chrome drip bowls
Audible preheat signal
Removable full-width storage drawer
Description
Available from Zip Appliance & Plumbing Repair, serving customers throughout California.
Features
Self-clean oven
Self-clean allows you to spare yourself from the trouble and effort it takes to scrub the oven interior
Super-large oven capacity
Remarkably large oven interior is ideal for holidays, dinner parties and everyday family cooking
QuickSet oven controls
Electronic touch pads on the control panel make controlling your oven effortless
Coil heating elements
Removable elements provide even heat and are easy to clean
Dual-element bake
This top-and-bottom heating produces uniform browning and fast oven preheating
Chrome drip bowls
Spills are easily contained and quickly cleaned thanks to removable bowls
Audible preheat signal
Convenient signal alerts when the oven reaches desired temperature
Removable full-width storage drawer
Additional storage area is ideal for cookware and kitchen accessories
Six rack positions
Provides flexibility and allows consumers to make the most of available oven capacity
Certifications
California Prop 65
Specifications

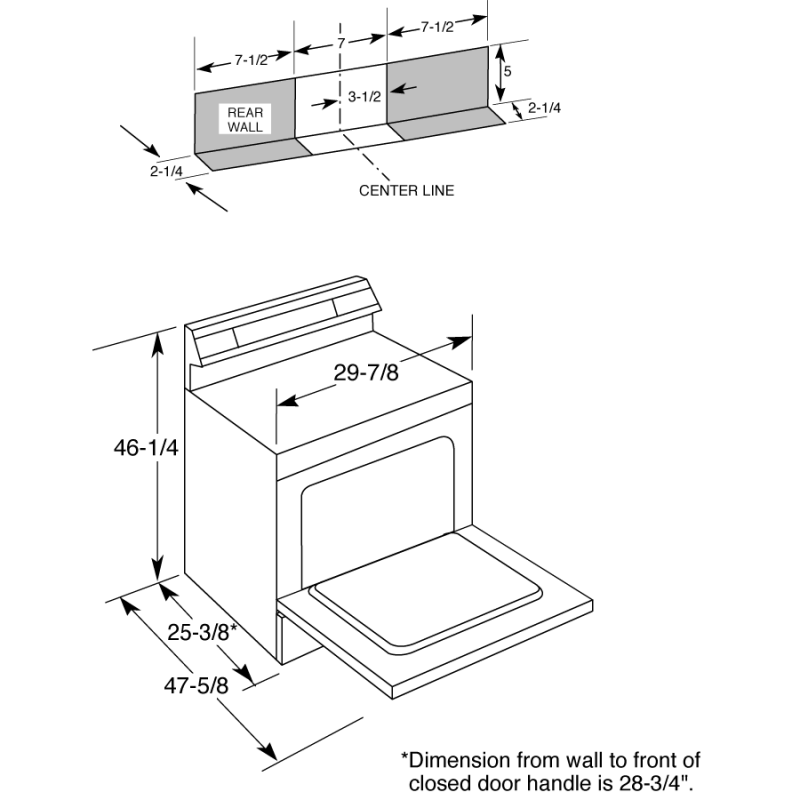

WEIGHTS & DIMENSIONS
| Overall Width | 29.875 in |
| Overall Depth | 27.75 in |
| Overall Height | 46.875 in |
| Net Weight | 149 lb |
| Depth Without Handle | 25.375 in |
| Oven Interior Dimensions (W x H x D) (in.) | 24-1/8 x 19-1/2 x 19-3/8 |
| Depth with Door Open | 47.625 in |
| Approximate Shipping Weight | 170 lb |
Other
| Oven Interior Dimensions (W x H x D) (in.) | 24-1/8 x 19-1/2 x 19-3/8 |
Dimensions & Weight
| Width | 29.88 in. |
| Height | 46.88 in. |
| Length | 27.75 in. |
| Weight | 149 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 34.88 in. |
| Shipping Height | 51.88 in. |
| Shipping Length | 32.75 in. |
| Shipping Weight | 189 lbs. |
| Total of Shipping Weight | 189 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 22.49 ft³ |
| Dimensional Weight | 279.57 lbs. |
| Total of Cubes | 22.49 ft³ |
| Total of Dimensional Weight | 279.57 lbs. |
FEATURES
| Configuration | Range with Storage Drawer |
| Removable One-Piece Drip Bowls | Chrome |
| Storage Drawer Features | Removable |
| Interior Oven Light | Yes |
| Cooktop Burner Type | Coil |
| Oven Rack Features | 2 Oven Racks |
| 6" Heating Element(s) | 2 Plug-In (1,500W) |
| Oven Cleaning Type | Self-Clean |
| Style | Coil |
| Heating Element "ON" Indicator Light | Yes |
| Control Location | Backsplash |
| 8" Heating Element (s) | 2 Plug-In (2,600W) |
| Cooking Technology | Traditional |
| Control Type | Electronic |
| Cooktop Surface | Lift-Up |
| Oven Control Features | Auto Oven Shut-Off with Override |
| Oven Features | Dual-Element Bake |
POWER / RATINGS
| KW Rating at 240V | 11.7 |
| Amp Rating at 208V | 40 |
| KW Rating at 208V | 8.8 |
| Amp Rating at 240V | 40 |
APPEARANCE
| Oven Door Features | Small Hearth-Shaped Window |
| Color Appearance | White on White |
CAPACITY
| Unit Capacity | Super Large Oven |
| Total Capacity (cubic feet) | 5.3 cu ft |
WARRANTY
| Labor Warranty | Limited 1-year entire appliance |
| Parts Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
